Background Info
Common Notation and Symbols
Entity Relationship Diagrams (ERD): are graphically represented using conceptual and physical diagrams. These diagrams are used to describe the entities, their relationships, and ultimately, instruct the design of the database.
Conceptual ER diagrams: are the often the first step in the Logical Database Design Process. This
diagraming iteration allows database architects to gain a broad view of the entitles that need to be
included in the data model, and the relationships between these entities.
Physical ER diagrams: is the final stage of the database design process. This is the most granular
phase of the modeling process, as all elements of the ER are described: entity and field names, keys,
cardinality, modality, and deletion rules.
Why is this important?
Going through the ER diagram design process
has the following benefits:
- Saves time and effort in the long run from having to revamp poorly design databases.
- The database is easy to modify and maintain.
- The data is easy to modify.
- Querying is easier to perform.
- Easier to build and develop end-user applications.
Resources
- My favorite book that discusses this topic: Database Design for Mere Mortals, by Michael J Hernandez
- Chen, Peter Pin-Shan (1976). "The Entity–Relationship Model – Toward A Unified View of Data"ACM Transactions on Database Systems. 1 (1): 9–36. CiteSeerX 10.1.1.523.6679. doi:10.1145/320434.320440. ISSN 0362-5915.
-
-

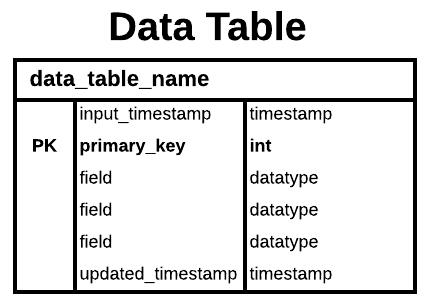

- consists of a collection of information that when grouped, forms an object or event, which we perceive as a table.
-

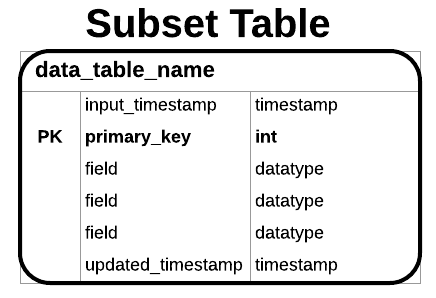

- depends on another entity for its existence.
-

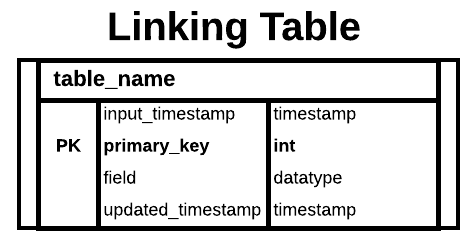

- a data structure that holds information associated between two or more entities.
-
- are characteristics of an entity.
- are also referred to as "fields".
- denoted as an oval in the chen notation system, see resources section of this page.
-
- the attribute in an entity that uniquely identifies it among other entities in a schema.
-
- an attribute that contains multiple instances of the same type of value
- the name of the attribute is usually plural
- the value contains several commas that separate multiple occurences of that value. Example field name "Painting_Colors", value: 'yellow', 'red', 'green'. In this example, a value should only contain a single value, but three have been placed with commas.
- these attributes can create significant data integrity issues if not properly addressed.
-
Physical ER Notations and Symbols
